Controller only ~ power supply, LEDs and all other accessories are sold separately
Description

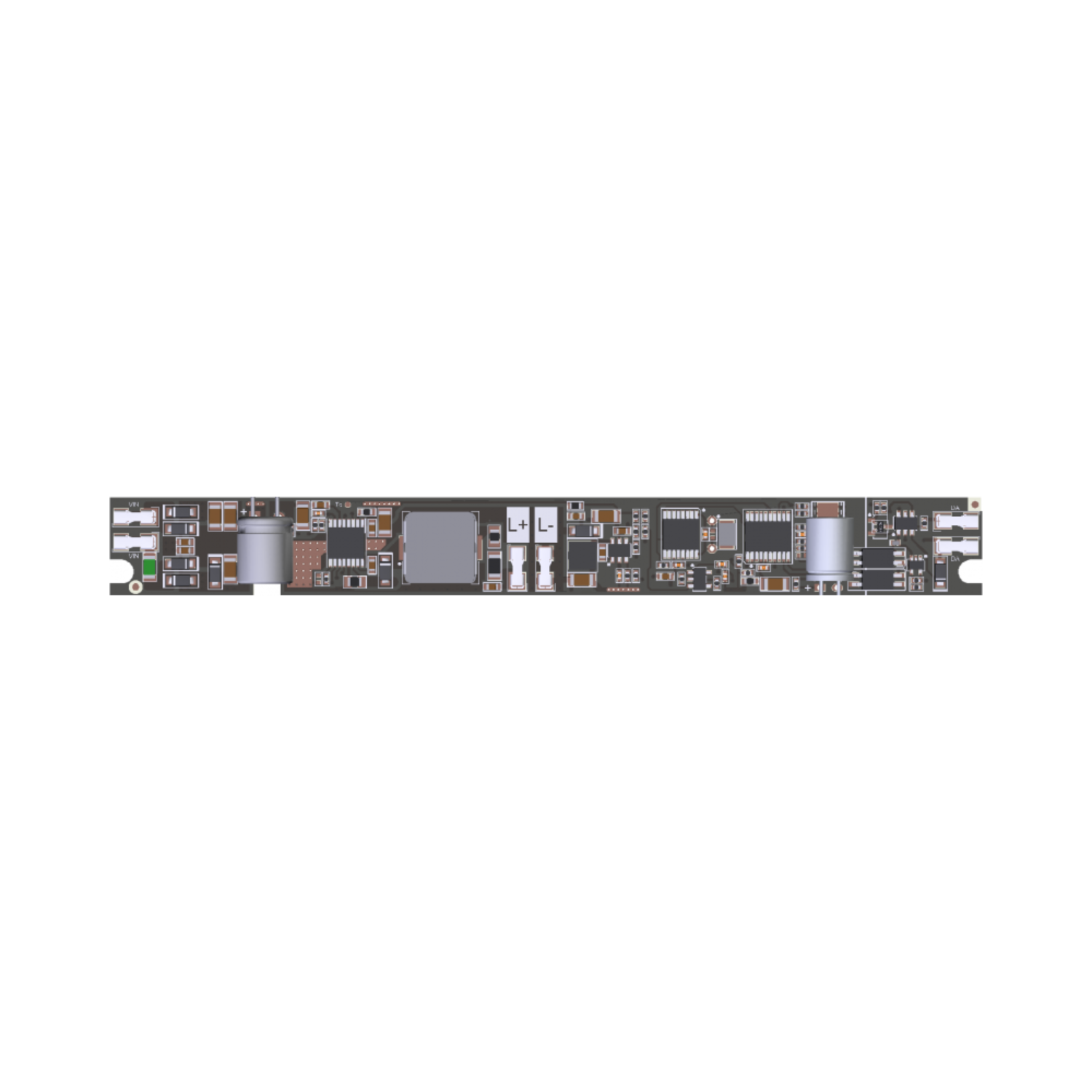

The MINITRACK-1CC-DALI-HC is a single-channel LED controller designed for hybrid modulation, offering both Amplitude Modulation (AM) and Pulse-Width Modulation (PWM) depending on the output current. It is controlled via DALI protocol, making it suitable for driving LED loads such as spotlights and single-color LED modules at a constant current.
This smart LED controller can be powered by a SELV Constant Voltage 48V DC supply and delivers a maximum output current of 1.35 A. It includes advanced protections such as open-circuit and short-circuit detection, over-voltage and under-voltage protections, reverse polarity protection, and input fuse protection.
Perfect for showrooms, art galleries, and commercial spaces, the controller’s compact design allows for easy installation in any environment. It features hybrid dimming technology that intelligently utilizes both amplitude
modulation (AM) and pulse-width modulation (PWM) to ensure optimal light control across a wide range of intensities without flickering, making it perfect for environments requiring visual calm, such as galleries. Additionally, it operates with zero noise, ensuring both visual and sonic tranquility.
The MINITRACK-1CC-DALI-HC LED controller is configurable via the Dalcnet LightApp© mobile application, which supports NFC technology. Users can adjust key parameters, including maximum output current, dimming curves, and brightness limits, even when the device is powered off. This app is available for free download from the Apple App Store and Google Play Store.
General specifications
- Model: MINITRACK-1CC-DALI-HC

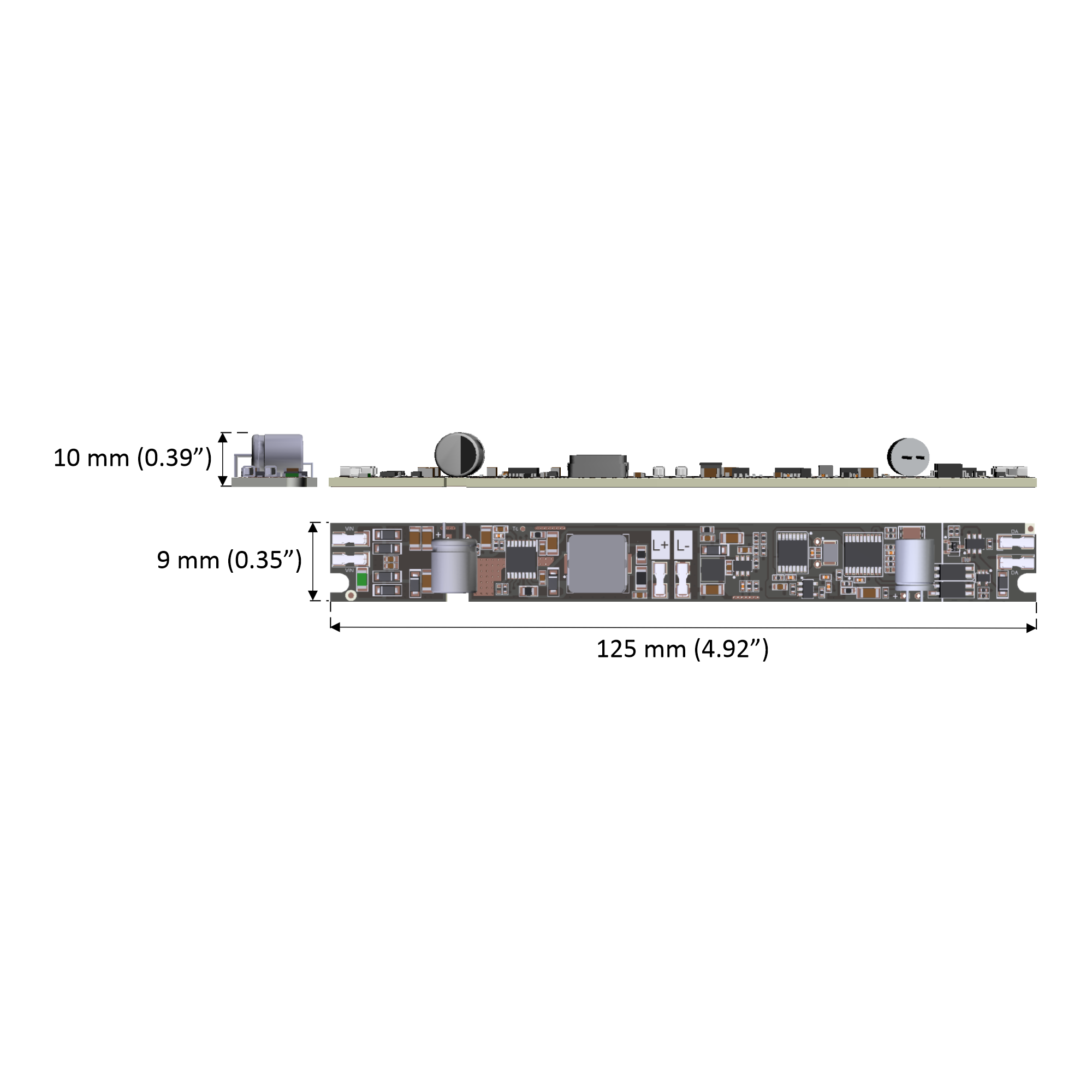

- Overall dimensions: 125 x 10 x 9 mm (4.92” x 0.39” x 0.35”)
- Supply voltage: 48V DC
- Max output power: 350-1350mA
- Channels: 1
- Bus: DALI
- Operating temperature: -10 / +60°C (+14 / +40°F)
Downloads
Important notes
- Items in stock are shipped the same day from Knoxville, Tennessee, United States.
- Bulk pricing is available on request
